ICS84427, CRYSTAL-TO-LVDS INTEGRATED FREQUENCY SYNTHESIZER/FANOUT BUFFER

www.DataSheet4U.com PRELIMINARY Integrated Circuit Systems, Inc.ICS84427 CRYSTAL-TO-LVDS INTEGRATED FREQUENCY SYNTHESIZER/FANOUT BUFFER .
The ICS84427 is a Crystal-to-LVDS Frequency Synthesizer/Fanout Buffer and a member of the HiPerClockS™ HiPerClockS™ family of High Performance Clock S.

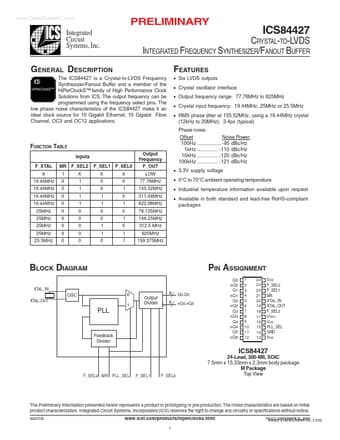

datasheet Preview Page 1 from Datasheet4u.com

ICS84427_ICS.pdf

ICS84427 Datasheet Preview — Preview of ICS84427 PDF

Datasheet Details

Part number:

ICS84427

Manufacturer:

ICS

File Size:

158.68 KB

Description:

CRYSTAL-TO-LVDS INTEGRATED FREQUENCY SYNTHESIZER/FANOUT BUFFER

Features

* Six LVDS outputs
* Crystal oscillator interface
* Output frequency range: 77.76MHz to 625MHz
* Crystal input frequency: 19.44MHz, 25MHz or 25.5MHz
* RMS phase jitter at 155.52MHz, using a 19.44MHz crystal (12kHz to 20MHz): 3.4ps (typical) Phase noise: Offset

Applications

* IC S FUNCTION TABLE Inputs F_XTAL X 19.44MHz 19.44MHz 19.44MHz 19.44MHz 25MHz 25MHz 25MHz 25MHz 25.5MHz MR 1 0 0 0 0 0 0 0 0 0 F_SEL2 X 1 1 1 1 0 0 0 0 0 F_SEL1 F_SEL0 X 0 0 1 1 0 0 1 1 0 X 0 1 0 1 0 1 0 1 1 Output Frequency F_OUT LOW 77.76MHz 155.52MHz 311.04MHz 622.08MHz 78.125MHz 156.25MHz 312
