ID5S609 Datasheet - IDRIVER

ID5S609 - High Side & Low Side Gate Driver

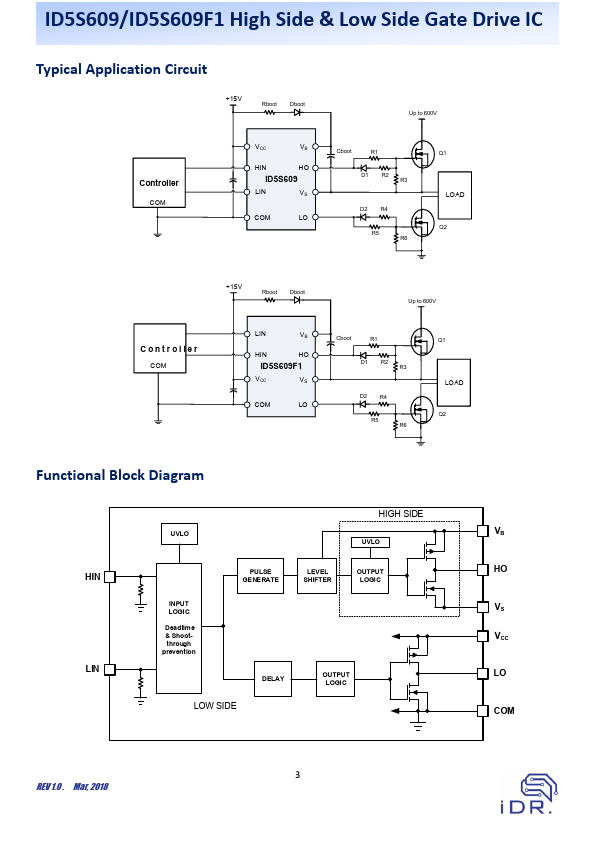

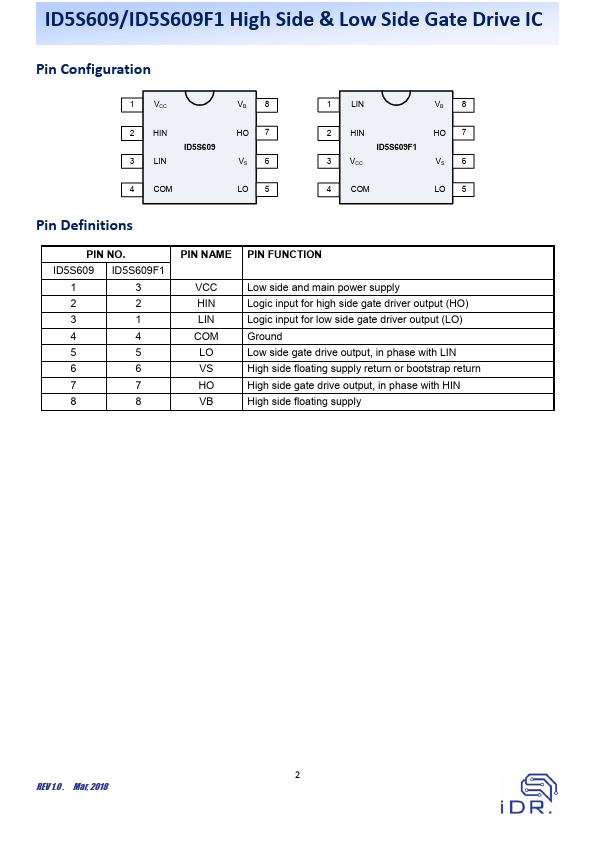

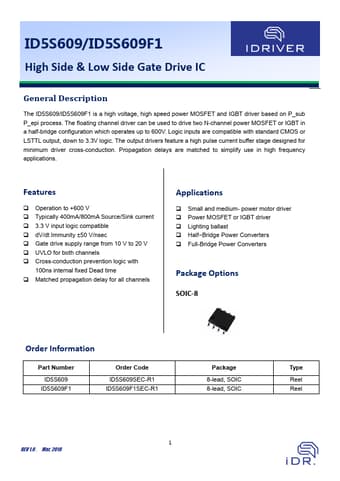

The ID5S609/ID5S609F1 is a high voltage, high speed power MOSFET and IGBT driver based on P_sub P_epi process. The floating channel driver can be used to drive two N-channel power MOSFET or IGBT in a half-bridge configuration which operates up to 600V. Logic inputs are compatible with standard CMOS .

ID5S609 Features

*  Operation to +600 V  Typically 400mA/800mA Source/Sink current  3.3 V input logic compatible  dV/dt Immunity ±50 V/nsec  Gate drive supply range from 10 V to 20 V  UVLO for both channels  Cross-conduction prevention logic with 100ns internal fixed Dead time  Matched propagation delay for al

ID5S609-IDRIVER.pdf

ID5S609 Datasheet Preview — Preview of ID5S609 PDF

Datasheet Details

Part number:

ID5S609

Manufacturer:

IDRIVER

File Size:

1.02 MB

Description:

High side & low side gate driver.
