ID5S609F1, ID5S609 Datasheet - IDRIVER

ID5S609F1, ID5S609, High Side & Low Side Gate Driver

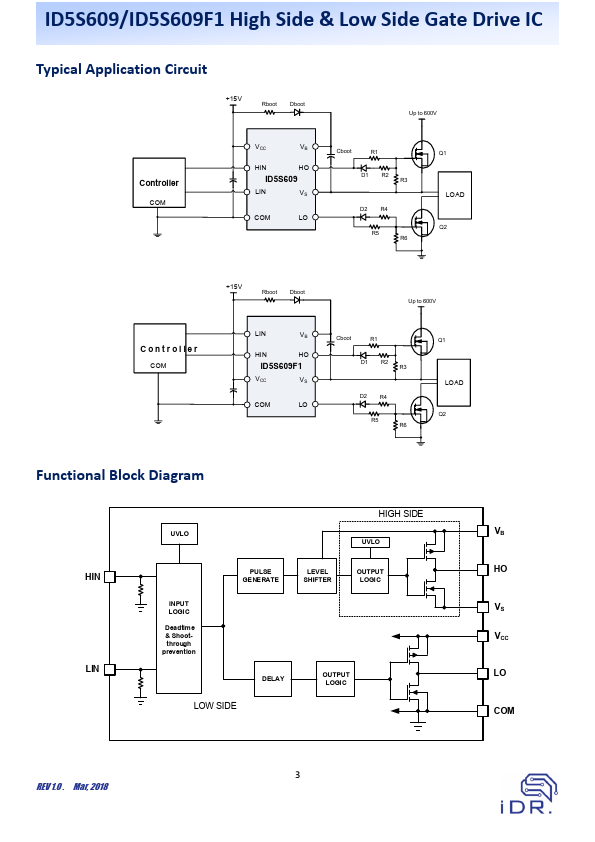

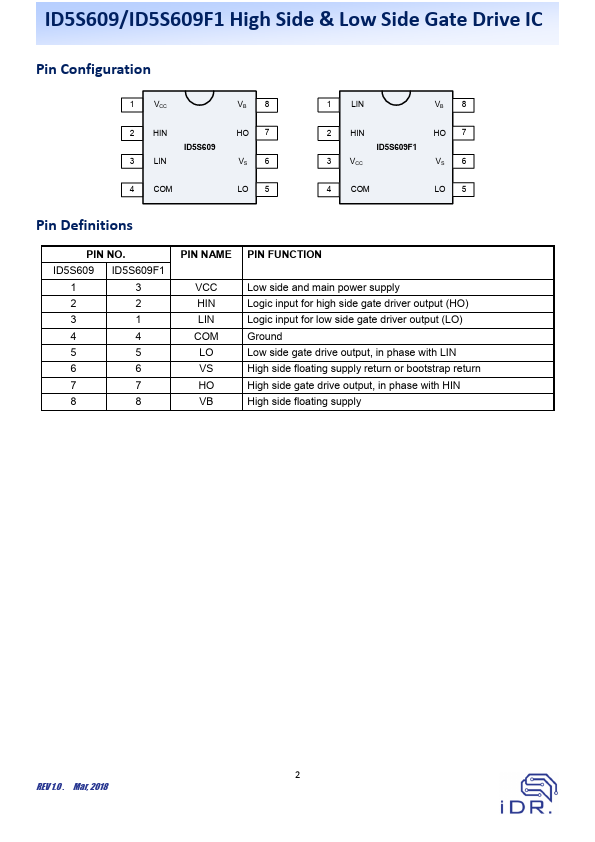

ID5S609/ID5S609F1 High Side & Low Side Gate Drive IC General .

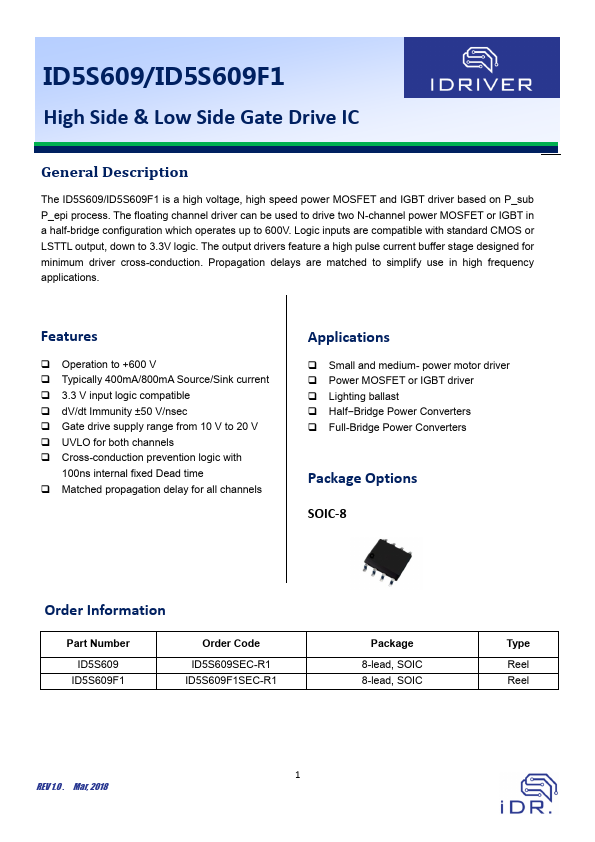

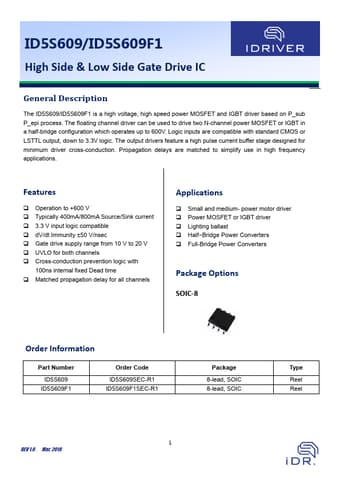

The ID5S609/ID5S609F1 is a high voltage, high speed power MOSFET and IGBT driver based on P_sub P_epi process.

datasheet Preview Page 1 from Datasheet4u.com

ID5S609-IDRIVER.pdf

ID5S609F1 Datasheet Preview — This datasheet PDF includes multiple part numbers: ID5S609F1, ID5S609. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ID5S609F1, ID5S609

Manufacturer:

IDRIVER

File Size:

1.02 MB

Description:

High Side & Low Side Gate Driver

Note:

This datasheet PDF includes multiple part numbers: ID5S609F1, ID5S609.
Please refer to the document for exact specifications by model.

Features

*  Operation to +600 V  Typically 400mA/800mA Source/Sink current  3.3 V input logic compatible  dV/dt Immunity ±50 V/nsec  Gate drive supply range from 10 V to 20 V  UVLO for both channels  Cross-conduction prevention logic with 100ns internal fixed Dead time  Matched propagation delay for al
