54FCT244A

FAST CMOS OCTAL BUFFER/LINE DRIVER

IDT

54FCT244A Features

* IDT54FCT244 equivalent to FAST™ speed and drive

* IDT54/74FCT244A 25% faster than FAST

* IDT74FCT244C up to 55% faster than FAST

* IOL = 64mA (commercial) and 48mA (military)

* CMOS power levels (1mW typ. static)

* MIlitary product compliant to MIL-

54FCT244A General Description

The IDT octal buffer/line drivers are built using an advanced dual metal CMOStechnology.The FCT244isdesignedtobeemployedasamemoryand address driver, clock driver, and bus-oriented transmitter/receiver which provides improved board density. FUNCTIONAL BLOCK DIAGRAM 1 OEA 2 DA0 3 OB0 4 DA1 OB1 5 6 .

54FCT244A Datasheet (67.71 KB)

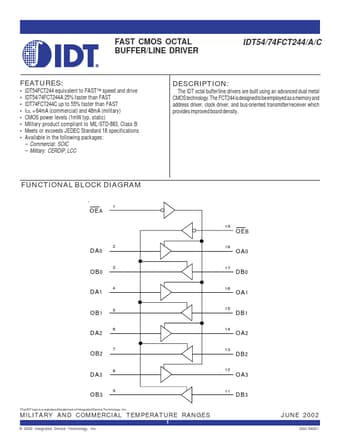

54FCT244A Datasheet Preview — Preview of 54FCT244A PDF

Datasheet Details

Part number:

54FCT244A

Manufacturer:

IDT

File Size:

67.71 KB

Description:

Fast cmos octal buffer/line driver.
IDT54/74FCT244/A/C FAST CMOS OCTAL BUFFER/LINE DRIVER MILITARYANDCOMMERCIAL TEMPERATURERANGES FAST CMOS OCTAL BUFFER/LINE DRIVER IDT54/74FCT244/A/C.
