54FCT245CT FAST CMOS OCTAL BIDIRECTIONAL TRANSCEIVER

The IDT octal bidirectional transceivers are built using an advanced dual metal CMOS technology. The FCT245T is designed for asynchronous twoway communication between data buses. The transmit/receive (T/R) input determines the direction of data flow through the bidirectional tra.

54FCT245CT Features

* Std., A, and C grades

* Low input and output leakage ≤1µA (max.)

* CMOS power levels

* True TTL input and output compatibility:

* VOH = 3.3V (typ.)

* VOL = 0.3V (typ.)

* High Drive outputs (-15mA IOH, 64mA IOL)

* Meets or exceeds JED

54FCT245T-IDT.pdf

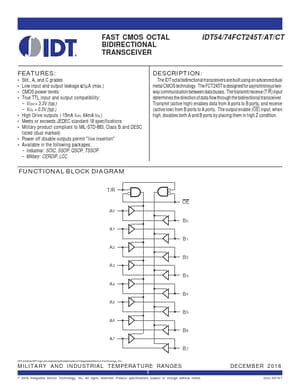

54FCT245CT Datasheet Preview — This datasheet PDF includes multiple part numbers: 54FCT245CT, 54FCT245T. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

54FCT245CT, 54FCT245T

Manufacturer:

IDT

File Size:

55.95 KB

Description:

Fast cmos octal bidirectional transceiver.

Note:

This datasheet PDF includes multiple part numbers: 54FCT245CT, 54FCT245T.
Please refer to the document for exact specifications by model.
