54FCT245 Datasheet, Transceiver, PYRAMID

54FCT245 Features

• Transceiver Function, Pinout and Drive Compatible with the FCT and F Logic FCT-A speed at 4.9ns max (MIL) Output levels compatible with TTL and CMOS Edge-rate control circuitry for signific

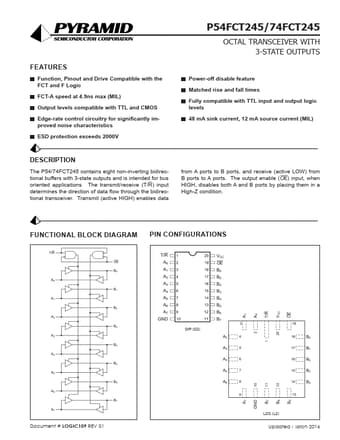

PDF File Details

Part number:

54FCT245

Manufacturer:

PYRAMID

File Size:

601.04kb

Download:

📄 Datasheet

Description:

Octal transceiver. The P54/74FCT245 contains eight non-inverting bidirectional buffers with 3-state outputs and is intended for bus oriented application

54FCT245 Application

• Applications The transmit/receive (T/R) input determines the direction of data flow through the bidirectional transceiver. Transmit (active HIGH) e
