5PB1110NDGI

1.8V to 3.3V LVCMOS High Performance Clock Buffer

5PB1110NDGI Features

* High-performance 1:2, 1:4, 1:6, 1:8, 1:10 LVCMOS clock buffer

* Very low pin-to-pin skew < 50ps

* Very low additive jitter < 50fs

* Supply voltage: 1.8V to 3.3V

* 3.3V tolerant input clock

* fMAX = 200MHz

* Integrated serial termination for 5

5PB1110NDGI General Description

The 5PB11xx is a high-performance LVCMOS clock buffer family. It has best-in-class additive phase jitter of 50fsec RMS. There are five different fan-out variations available: 1:2 to 1:10. The 5PB11xx also supports a synchronous glitch-free output enable (OE) function to eliminate any potential inter.

5PB1110NDGI Datasheet (494.03 KB)

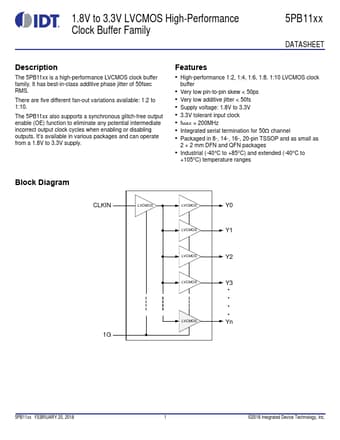

Preview of 5PB1110NDGI PDF

Datasheet Details

Part number:

5PB1110NDGI

Manufacturer:

IDT

File Size:

494.03 KB

Description:

1.8v to 3.3v lvcmos high performance clock buffer.
