5PB1110NDG, 5PB1102PGG, 1.8V to 3.3V High-Performance LVCMOS Clock Buffer

1.8V to 3.3V High-Performance LVCMOS Clock Buffer Family 5PB11xx Datasheet .
The 5PB11xx is a high-performance LVCMOS clock buffer family of devices.

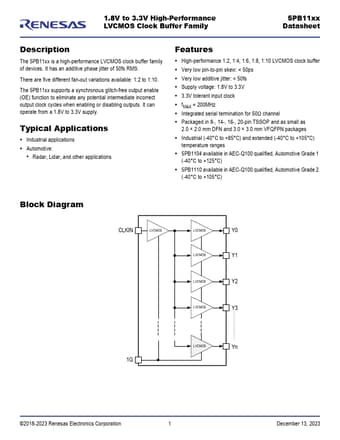

datasheet Preview Page 1 from Datasheet4u.com

5PB1102PGG-Renesas.pdf

5PB1110NDG Datasheet Preview — This datasheet PDF includes multiple part numbers: 5PB1110NDG, 5PB1102PGG. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

5PB1110NDG, 5PB1102PGG

Manufacturer:

Renesas ↗

File Size:

1.99 MB

Description:

1.8V to 3.3V High-Performance LVCMOS Clock Buffer

Note:

This datasheet PDF includes multiple part numbers: 5PB1110NDG, 5PB1102PGG.
Please refer to the document for exact specifications by model.

Features

* ▪ High-performance 1:2, 1:4, 1:6, 1:8, 1:10 LVCMOS clock buffer ▪ Very low pin-to-pin skew: < 50ps ▪ Very low additive jitter: < 50fs ▪ Supply voltage: 1.8V to 3.3V ▪ 3.3V tolerant input clock ▪ fMAX = 200MHz ▪ Integrated serial termination for 50Ω channel ▪ Packaged in 8-, 14-, 16-, 20-pin TSSOP an

Applications

* ▪ Industrial applications ▪ Automotive:
