12-Lane 12-Port PCIe® Gen2
System Interconnect Switch
®

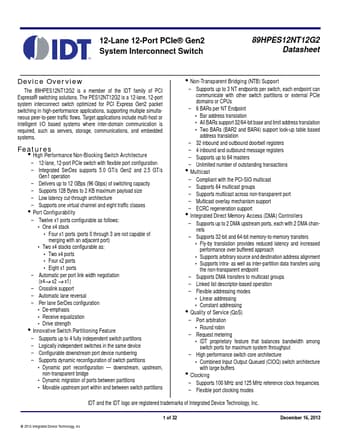

89HPES12NT12G2 Datasheet
Device Overview
The 89HPES12NT12G2 is a member of the IDT family of PCI Express® switching solutions. The PES12NT12G2 is a 12-lane, 12-port system interconnect switch optimized for PCI Express Gen2 packet switching in high-performance applications, supporting multiple simultaneous peer-to-peer traffic flows. Target applications include multi-host or intelligent I/O based systems where inter-domain communication is required, such as servers, storage, communications, and embedded systems.
Features
High Performance Non-Blocking Switch Architecture
– 12-lane, 12-port PCIe switch with flexible port configuration – Integrated SerDes supports 5.0 GT/s Gen2 and 2.
89HPES12NT12G2 Datasheet
