DAC1401D125 Datasheet PDF - IDT Dual 14-bit DAC Specs

DAC1401D125 - Dual 14-bit DAC

Datasheet Summary

Description

The DAC1401D125 is a dual port, high-speed, 2-channel CMOS Digital-to-Analog Converter (DAC), optimized for high dynamic performance with low power dissipation.

Supporting an update rate of up to 125 Msps, the DAC1401D125 is suitable for Direct IF applications.

Datasheet Details

Part number	DAC1401D125
Manufacturer	IDT
File Size	418.00 KB
Description	Dual 14-bit DAC
Datasheet	DAC1401D125 Datasheet

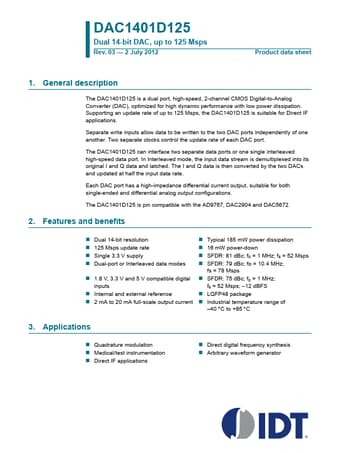

Additional preview pages of the DAC1401D125 datasheet.

📁 Similar Datasheet

DAC1403D160 - Dual 14 bits DAC (NXP Semiconductors)

DAC1405D650 - Dual 14-bit DAC (NXP Semiconductors)

DAC1405D750 - Dual 14-bit DAC (NXP Semiconductors)

DAC1408 - 8 Bit Multiplying D/A Converter (Fairchild)

DAC1408A - 8 Bit Multiplying D/A Converter (Precision Monolithics)

DAC1408D650 - Dual 14-bit DAC (NXP)

DAC14135 - 14-bit/ 135MSPS D/A Converter (National Semiconductor)

DAC10 - 10-Bit High Speed Multiplying D/A Converter Universal Digital Logic Interface (Analog Devices)

DAC100 - 10-Bit Current Output D/A Converter (Analog Devices)

DAC1000 - DOUBLE-BUFFERED D-A CONVERTERS (National Semiconductor)

Full PDF Text Transcription

Click to expand full text

DAC1401D125 Dual 14-bit DAC, up to 125 Msps Rev. 03 — 2 July 2012 Product data sheet 1. General description The DAC1401D125 is a dual port, high-speed, 2-channel CMOS Digital-to-Analog Converter (DAC), optimized for high dynamic performance with low power dissipation. Supporting an update rate of up to 125 Msps, the DAC1401D125 is suitable for Direct IF applications. Separate write inputs allow data to be written to the two DAC ports independently of one another. Two separate clocks control the update rate of each DAC port. The DAC1401D125 can interface two separate data ports or one single interleaved high-speed data port. In Interleaved mode, the input data stream is demultiplexed into its original I and Q data and latched.
