DAC1403D160 - Dual 14-bit DAC

Datasheet Summary

Description

The DAC1403D160 is optimized to reduce architecture complexity and overall system cost.

It leads to dynamic performance in multi-carrier support, because of its direct IF conversion capabilities.

Features

  • Dual 14-bit resolution.
  • Spurious-Free Dynamic Range (SFDR) = 80 dBc at 2.5 MHz.
  • Input data rate up to 80 MHz.
  • 2  interpolation filter.
  • Output data rate up to 160 MHz.
  • Single 3.3 V power supply.
  • Low noise capacitor-free integrated Phase-Locked Loup (PLL).
  • Low power dissipation.
  • HTQFP80 package.
  • Ambient temperature from 40 C to +85 C 3.

📥 Download Datasheet

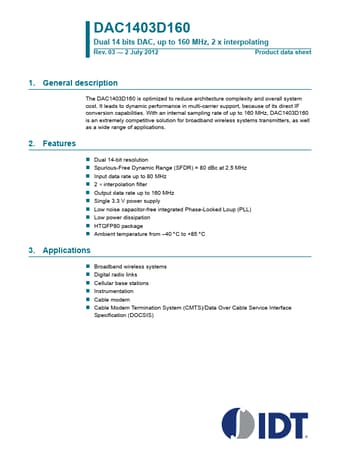

Datasheet preview – DAC1403D160
