DAC14135 - 14-bit/ 135MSPS D/A Converter

This page provides the datasheet information for the DAC14135, a member of the DAC 14-bit/ 135MSPS D/A Converter family.

Datasheet Summary

Description

The DAC14135 is a monolithic 14-bit, 135MSPS digital-to-analog converter.

The device has been optimized for use in cellular base stations and other applications where high resolution, high sampling rate, wide dynamic range, and compact size are required.

Features

  • including a proprietary segmented DAC core, differential current outputs, a band-gap voltage reference, and TTL/CMOS compatible inputs. The converter features an 85dBc spurious free dynamic range (SFDR) at low frequencies and a 70dBc SFDR with 20MHz output signals. The 48-pin TSSOP package provides an extremely small footprint for.

📥 Download Datasheet

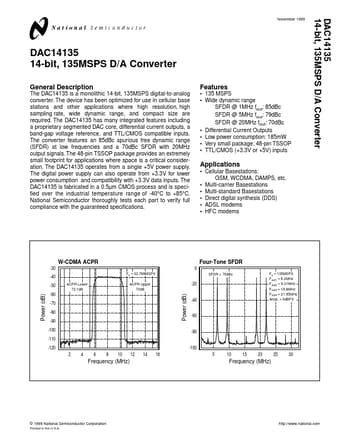

Datasheet preview – DAC14135

Datasheet Details

Part number DAC14135
Manufacturer National Semiconductor
File Size 842.43 KB
Description 14-bit/ 135MSPS D/A Converter
Datasheet download datasheet DAC14135 Datasheet
Additional preview pages of the DAC14135 datasheet.
