ICS9FG104D - Frequency Generator

ICS9FG104D Description

DATASHEET Frequency Generator for CPU, QPI, FBD, PCIe Gen 2 & SATA ICS9FG104D .
The ICS9FG104D is a Frequency Timing Generator that provides 4 differential output pairs that are compliant to the Intel CK410 specification.

ICS9FG104D Features

* Benefits
* Generates common frequencies from 14.318 MHz or 25 MHz
* Crystal or reference input
* 4 - 0.7V current-mode differential output pairs
* Supports Serial-ATA at 100 MHz
* Two spread spectrum modes: 0 to -0.5 downspread and +/-0.25% centers

📥 Download Datasheet

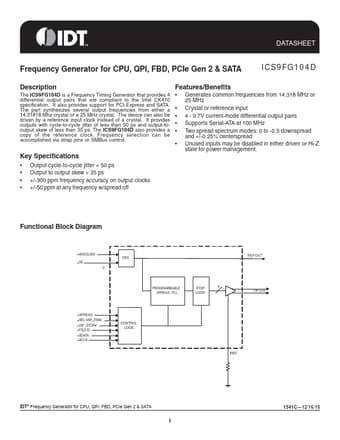

Preview of ICS9FG104D PDF
