ICS9FG108D - Frequency Generator

ICS9FG108D Description

Frequency Generator for CPU, QPI, FBD, PCIe Gen 2 & SATA DATASHEET ICS9FG108D .
ICS9FG108D is a Frequency Timing Generator that provides 8 differential output pairs that are compliant to the Intel CK410 specification.

ICS9FG108D Features

* Benefits
* Generates common frequencies from 14.318 MHz or 25 MHz
* Crystal or reference input
* 8 - 0.7V current-mode differential output pairs
* Supports Serial-ATA at 100 MHz
* Two spread spectrum modes: 0 to -0.5 down spread and +

📥 Download Datasheet

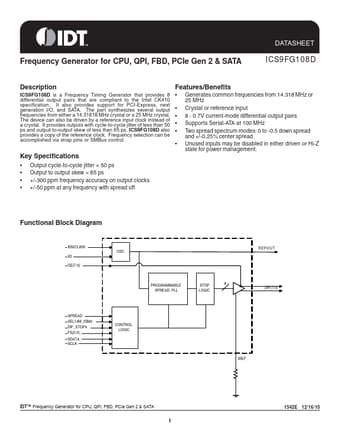

Preview of ICS9FG108D PDF
