ICS9FG107

Programmable FTG

ICS9FG107 Datasheet (221.91 KB)

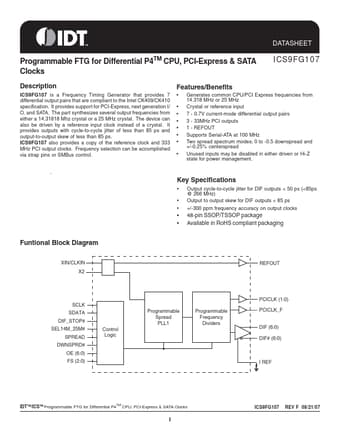

Preview of ICS9FG107 PDF Datasheet

Datasheet Details

Part number:

ICS9FG107

Manufacturer:

IDT

File Size:

221.91 KB

Description:

Programmable ftg

ICS9FG107 Features

* Benefits

* Generates common CPU/PCI Express frequencies from 14.318 MHz or 25 MHz

* Crystal or reference input

* 7 - 0.7V current-mode differential output pairs

* 3 - 33MHz PCI outputs

* 1 - REFOUT

* Supports

ICS9FG107 General Description

ICS9FG107 is a Frequency Timing Generator that provides 7 differential output pairs that are compliant to the Intel CK409/CK410 specification. It provides support for PCI-Express, next generation I/ O, and SATA. The part synthesizes several output frequencies from either a 14.31818 Mhz crystal or a .
