IDT54AHCT640 Datasheet, Transceiver, IDT

IDT54AHCT640 Features

  • Transceiver
  • Equivalent to ALS speeds and output drive over full temperature and voltage supply extremes
  • 10ns data to output
  • IOl = 14mA over full military temperature

PDF File Details

Part number:

IDT54AHCT640

Manufacturer:

IDT

File Size:

168.41kb

Download:

📄 Datasheet

Description:

High speed cmos octal inverting buffer transceiver. The IDT54/74AHCT640 are 8-bit inverting buffer transceivers built using advanced CEMOS'", a dual metal CMOS technology. These octal

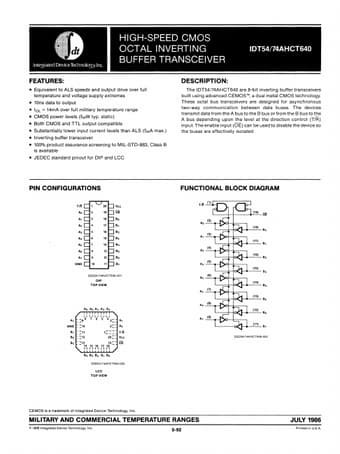

Datasheet Preview: IDT54AHCT640 📥 Download PDF (168.41kb)
Page 2 of IDT54AHCT640 Page 3 of IDT54AHCT640
