IDT54AHCT645 Datasheet, Transceiver, IDT

IDT54AHCT645 Features

  • Transceiver
  • Equivalent to ALS speeds and output drive over full temperature and voltage supply extremes
  • 8ns typical data to output delay
  • IOL = 14mA over full military

PDF File Details

Part number:

IDT54AHCT645

Manufacturer:

IDT

File Size:

166.34kb

Download:

📄 Datasheet

Description:

High speed cmos non-inverting buffer transceiver. The IDT54174AHCT645 are 8-bit non-inverting buffer transceivers built using advanced CEMOS'

  • , a dual metal CMOS technology.

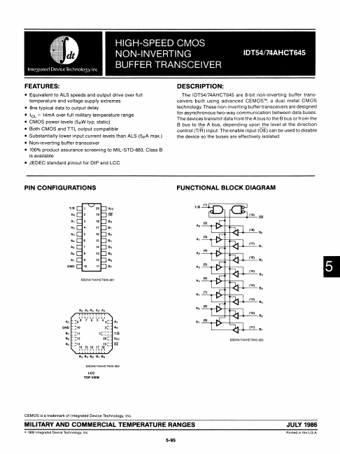

  • Datasheet Preview: IDT54AHCT645 📥 Download PDF (166.34kb)
    Page 2 of IDT54AHCT645 Page 3 of IDT54AHCT645
