IDT54FCT193

FAST CMOS UP/DOWN BINARY COUNTERS

IDT54FCT193 Features

* IDT54/74FCT193 equivalent to FAST™ speed

* IDT54/74FCT193A 35% faster than FAST

* Equivalent to FAST output drive over full temperature and voltage supply extremes

* IOL = 48mA (commercial), 32mA (military)

* CMOS power levels (1mW typ. static)

* CM

IDT54FCT193 General Description

The IDT54/74FCT193 and IDT54/74FCT193A are up/ down modulo-16 binary counters built using an advanced dual metal CMOS technology. Separate count-up and countdown clocks are used and, in either counting mode, the circuits operate synchronously. The outputs change state synchronously with the LOW-to-.

IDT54FCT193 Datasheet (111.73 KB)

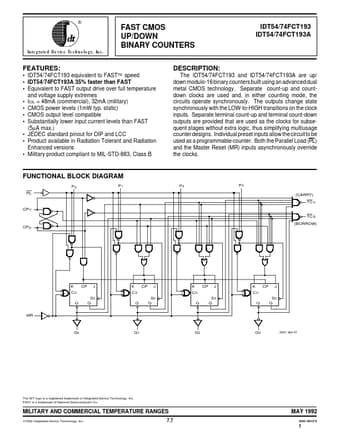

Preview of IDT54FCT193 PDF

Datasheet Details

Part number:

IDT54FCT193

Manufacturer:

IDT

File Size:

111.73 KB

Description:

Fast cmos up/down binary counters.
