IDT70T3509M HIGH-SPEED 2.5V 1024K x 36 SYNCHRONOUS DUAL-PORT STATIC RAM

The IDT70T3509M is a high-speed 1024K x 36 bit synchronous Dual-Port RAM. The memory array utilizes Dual-Port memory cells to allow simultaneous access of any address from both ports. Registers on control, data, and address inputs provide minimal setup and hold times. The timing latitude provided b.

IDT70T3509M Features

* True Dual-Port memory cells which allow simultaneous access of the same memory location High-speed data access

* Commercial: 4.2ns (133MHz)(max.)

* Industrial: 4.2ns (133MHz)(max.) Selectable Pipelined or Flow-Through output mode Counter enable

IDT70T3509M_IDT.pdf

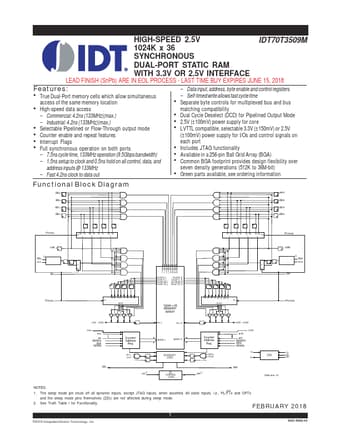

IDT70T3509M Datasheet Preview — Preview of IDT70T3509M PDF

Datasheet Details

Part number:

IDT70T3509M

Manufacturer:

IDT

File Size:

361.51 KB

Description:

High-speed 2.5v 1024k x 36 synchronous dual-port static ram.
