IDT70V3589 HIGH-SPEED SYNCHRONOUS DUAL-PORT STATIC RAM

The IDT70V3599/89 is a high-speed 128/64K x 36 bit synchronous Dual-Port RAM. The memory array utilizes Dual-Port memory cells to allow simultaneous access of any address from both ports. Registers on control, data, and address inputs provide minimal setup and hold times. The timing latitude provid.

IDT70V3589 Features

* True Dual-Port memory cells which allow simultaneous access of the same memory location

* High-speed data access

* Commercial: 3.6ns (166MHz)/4.2ns (133MHz) (max.)

* Industrial: 4.2ns (133MHz) (max.)

* Selectable Pipelined or Flow-Through output mode

* Counter enab

IDT70V3589_IntegratedDeviceTechnology.pdf

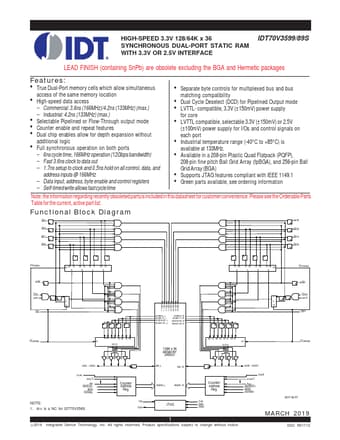

IDT70V3589 Datasheet Preview — Preview of IDT70V3589 PDF

Datasheet Details

Part number:

IDT70V3589

Manufacturer:

IDT

File Size:

205.91 KB

Description:

High-speed synchronous dual-port static ram.
