IDT71256S

CMOS STATIC RAM

IDT71256S Features

* High-speed address/chip select time

* Military: 25/35/45/55/70/85/100ns (max.)

* Commercial/Industrial: 20/25/35ns (max.) low power only

* Low-power operation

* Battery Backup operation

* 2V data retention

* Produced with advanced high-performance CMOS techn

IDT71256S General Description

The IDT 71256 is a 262,144-bit high-speed static RAM organized as 32K x 8. It is fabricated using high-performance, high-reliability CMOS technology. Address access times as fast as 20ns are available with power consumption of only 350mW (typ.). The circuit also offers a reduced power standby mode..

IDT71256S Datasheet (84.76 KB)

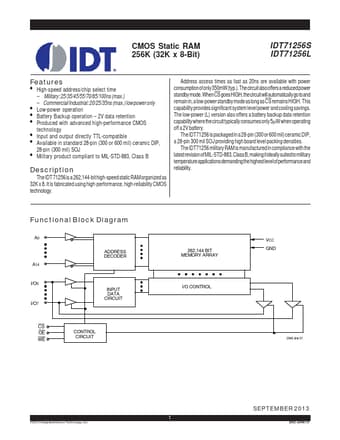

Preview of IDT71256S PDF

Datasheet Details

Part number:

IDT71256S

Manufacturer:

IDT

File Size:

84.76 KB

Description:

Cmos static ram.
