IDT71256TTSA - CMOS Static RAM

IDT71256TTSA Description

CMOS Static RAM 256K (32K x 8-Bit) IDT71256SA/TTSA .
The IDT71256SA is a 262,144-bit high-speed Static RAM organized as 32K x 8.

IDT71256TTSA Features

* 32K x 8 advanced high-speed CMOS static RAM
* Commercial (0° to 70°C) and Industrial (-40° to 85°C) temperature options
* Equal access and cycle times
* Commercial and Industrial: 12/15/20/25ns
* One Chip Select plus one Output Enable pin
* Bidirectional data inputs and

📥 Download Datasheet

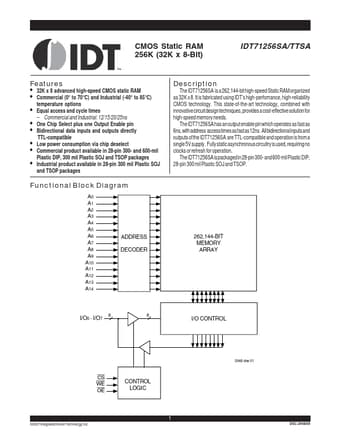

Preview of IDT71256TTSA PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IDT71256TTSA
Manufacturer
IDT
File Size
94.81 KB
Datasheet
IDT71256TTSA-IDT.pdf
Description
CMOS Static RAM
