IDT71257L

CMOS STATIC RAM 256K

IDT71257L Features

* High-speed (equal access and cycle times) -Military - 45/55/70/85ns max. -Commercial - 35/45/55/70ns max.

* Low-power operation -IDT 71257S Active: 400mW (typ.) Standby: 400l'W (typ.) -IDT 71257L Active: 350mW (typ.) Standby: 100l'W (typ.)

* Battery backup operation - 2V d

IDT71257L General Description

The IDT71257, a 262, 144-bit high-speed static RAM organized as 256K x 1, is fabricated using IDT's high-performance, highreliability technology - CEMOS. This state-of-the-art technology, combined with innovative circuit design techniques, provides a cost effective approach for memory intensive app.

IDT71257L Datasheet (83.78 KB)

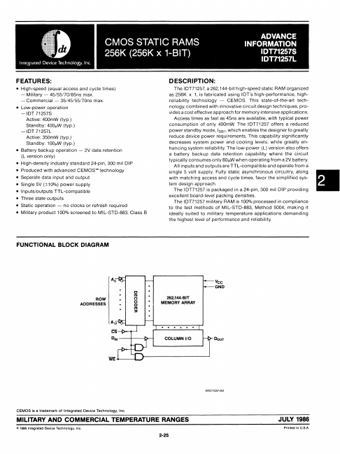

Preview of IDT71257L PDF

Datasheet Details

Part number:

IDT71257L

Manufacturer:

IDT

File Size:

83.78 KB

Description:

Cmos static ram 256k.
