IDT71V67603

3.3V Synchronous SRAMs

IDT71V67603 Features

* 256K x 36, 512K x 18 memory configurations

* Supports high system speed:

* 166MHz 3.5ns clock access time

* 150MHz 3.8ns clock access time

* 133MHz 4.2ns clock access time

* LBO input selects interleaved or linear burst mode

* Self-timed write cycle with glo

IDT71V67603 General Description

The IDT71V67603/7803 are high-speed SRAMs organized as 256K x 36/512K x 18. The IDT71V67603/7803 SRAMs contain write, data, address and control registers. Internal logic allows the SRAM to generate a self-timed write based upon a decision which can be left.

IDT71V67603 Datasheet (241.61 KB)

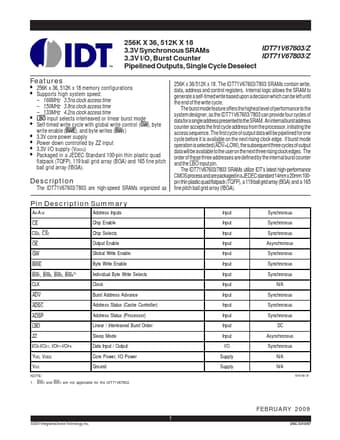

Preview of IDT71V67603 PDF

Datasheet Details

Part number:

IDT71V67603

Manufacturer:

IDT

File Size:

241.61 KB

Description:

3.3v synchronous srams.
