IDT71V67702

(IDT71V67702 / IDT71V67902) Burst Counter Flow-Through Outputs / Single Cycle Deselect

IDT71V67702 Features

* x x x x x x x x 256K x 36, 512K x 18 memory configurations Supports fast access times:

* 7.5ns up to 117MHz clock frequency

* 8.0ns up to 100MHz clock frequency

* 8.5ns up to 87MHz clock frequency LBO input selects interleaved or linear burst mode Self-timed write cycle wi

IDT71V67702 General Description

The IDT71V67702/7902 are high-speed SRAMs organized as 256K x 36/512K x 18. The IDT71V67702/7902 SRAMs contain write, data, address and control registers. There are no registers in the data output path (flow-through architecture). Internal logic allows the SRAM to generate a self-timed write based .

IDT71V67702 Datasheet (540.14 KB)

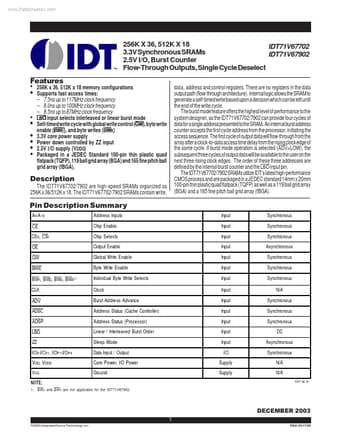

Preview of IDT71V67702 PDF

Datasheet Details

Part number:

IDT71V67702

Manufacturer:

IDT

File Size:

540.14 KB

Description:

(idt71v67702 / idt71v67902) burst counter flow-through outputs / single cycle deselect.
www.DataSheet4U.com 256K X 36, 512K X 18 IDT71V67702 3.3V Synchronous SRAMs IDT71V67902 2.5V I/O, Burst Counter Flow-Through Outputs, Single Cycle De.
