IDT74FCT16260CT, IDT74FCT16260 - FAST CMOS 12-BIT TRI-PORT BUS EXCHANGER

IDT74FCT16260CT Description

Integrated Device Technology, Inc.FAST CMOS 12-BIT TRI-PORT BUS EXCHANGER IDT54/74FCT16260AT/CT/ET IDT54/74FCT162260AT/CT/ET .

IDT74FCT16260CT Features

* Common features:
* 0.5 MICRON CMOS Technology
* High-speed, low-power CMOS replacement for ABT functions
* Typical tSK(o) (Output Skew) < 250ps
* Low input and output leakage ≤1µA (max. )
* ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machi

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IDT74FCT16260CT, IDT74FCT16260. Please refer to the document for exact specifications by model.

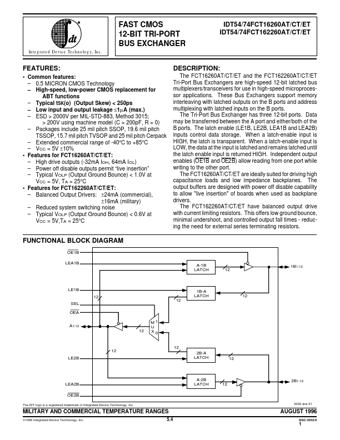

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IDT74FCT16260CT, IDT74FCT16260
Manufacturer
IDT
File Size
132.18 KB
Datasheet
IDT74FCT16260_IntegratedDeviceTechnology.pdf
Description
FAST CMOS 12-BIT TRI-PORT BUS EXCHANGER
Note
This datasheet PDF includes multiple part numbers: IDT74FCT16260CT, IDT74FCT16260.
Please refer to the document for exact specifications by model.
