IDT74FCT162260AT Datasheet PDF - Integrated Device Tech FAST CMOS 12-BIT TRI-PORT BUS EXCHANGER Specs

IDT74FCT162260AT - FAST CMOS 12-BIT TRI-PORT BUS EXCHANGER

Datasheet Summary

Description

The FCT16260AT/CT/ET and the FCT162260AT/CT/ET Tri-Port Bus Exchangers are high-speed 12-bit latched bus multiplexers/transceivers for use in high-speed microprocessor applications.

Features

FCT16260AT/CT/ET:.
High drive outputs (-32mA IOH, 64mA IOL).
Power off disable outputs permit “live insertion”.
Typical VOLP (Output Ground Bounce) < 1.0V at VCC = 5V, TA = 25°C.
Features for FCT162260AT/CT/ET:.
Balanced Output Drivers: ±24mA (commercial), ±16mA (military).
Reduced system switching noise.
Typical VOLP (Output Ground Bounce) < 0.6V at VCC = 5V,TA = 25°C.

Datasheet Details

Part number	IDT74FCT162260AT
Manufacturer	Integrated Device Tech
File Size	132.18 KB
Description	FAST CMOS 12-BIT TRI-PORT BUS EXCHANGER
Datasheet	IDT74FCT162260AT Datasheet

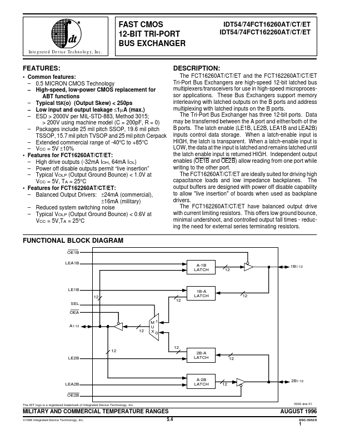

Additional preview pages of the IDT74FCT162260AT datasheet.

📁 Similar Datasheet

IDT74FCT162260CT - FAST CMOS 12-BIT TRI-PORT BUS EXCHANGER (IDT)

IDT74FCT162260ET - FAST CMOS 12-BIT TRI-PORT BUS EXCHANGER (IDT)

IDT74FCT162240AT - FAST CMOS 16-BIT BUFFER/LINE DRIVER (IDT)

IDT74FCT162240CT - FAST CMOS 16-BIT BUFFER/LINE DRIVER (IDT)

IDT74FCT162240ET - FAST CMOS 16-BIT BUFFER/LINE DRIVER (IDT)

IDT74FCT162244AT - FAST CMOS 16-BIT BUFFER/LINE DRIVER (IDT)

IDT74FCT162244CT - FAST CMOS 16-BIT BUFFER/LINE DRIVER (IDT)

IDT74FCT162244ET - FAST CMOS 16-BIT BUFFER/LINE DRIVER (IDT)

IDT74FCT162245AT - FAST CMOS 16-BIT BIDIRECTIONAL TRANSCEIVERS (IDT)

IDT74FCT162245AT - FAST CMOS 16-BIT BIDIRECTIONAL TRANSCEIVER (Renesas)

Full PDF Text Transcription

Click to expand full text

FAST CMOS 12-BIT TRI-PORT BUS EXCHANGER Integrated Device Technology, Inc. IDT54/74FCT16260AT/CT/ET IDT54/74FCT162260AT/CT/ET FEATURES: • Common features: – 0.5 MICRON CMOS Technology – High-speed, low-power CMOS replacement for ABT functions – Typical tSK(o) (Output Skew) < 250ps – Low input and output leakage ≤1µ A (max.) – ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0) – Packages include 25 mil pitch SSOP, 19.6 mil pitch TSSOP, 15.7 mil pitch TVSOP and 25 mil pitch Cerpack – Extended commercial range of -40°C to +85°C – VCC = 5V ±10% • Features for FCT16260AT/CT/ET: – High drive outputs (-32mA IOH, 64mA IOL) – Power off disable outputs permit “live insertion” – Typical VOLP (Output Ground Bounce) < 1.

Published: Apr 21, 2005 |
