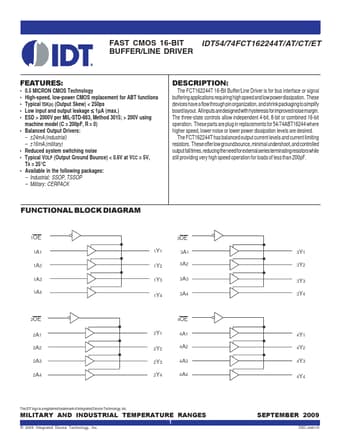

Integrated Device Technology, Inc.
FAST CMOS 16-BIT BUFFER/LINE DRIVER
IDT54/74FCT16244T/AT/CT/ET IDT54/74FCT162244T/AT/CT/ET
IDT54/74FCT166244T/AT/CT IDT54/74FCT162H244T/AT/CT/ET
FEATURES:
DESCRIPTION:
• Common features:
The 16-Bit Buffer/Line Driver is for bus interface or signal buffering
– 0.5 MICRON CMOS Technology
applications requiring high speed and low power dissipation. These
– High-speed, low-power CMOS replacement for
devices have a flow through pin organization, and shrink packaging
ABT functions
to simplify board layout. All inputs are designed with hysteresis for
– Typical tSK(o) (Output Skew) < 250ps
improved noise margin. The three-state controls allow independent
– Low input and output leakage ≤ 1µA (max.)
4-bit, 8-bit or combined 16-bit operation.
