IDT74FCT162245T - FAST CMOS 16-BIT BIDIRECTIONAL TRANSCEIVERS

Datasheet Summary

Description

The 16-bit transceivers are built using advanced dual metal CMOS technology.

These high-speed, low-power transceivers are ideal for synchronous communication between two busses (A and B).

Features

  • FCT16245T/AT/CT/ET:.
  • High drive outputs (-32mA IOH, 64mA IOL).
  • Power off disable outputs permit “live insertion”.
  • Typical VOLP (Output Ground Bounce) < 1.0V at VCC = 5V, TA = 25°C.
  • Features for FCT162245T/AT/CT/ET:.
  • Balanced Output Drivers: ±24mA (commercial), ±16mA (military).
  • Reduced system switching noise.
  • Typical VOLP (Output Ground Bounce) < 0.6V at VCC = 5V,TA = 25°C.

📥 Download Datasheet

Datasheet preview – IDT74FCT162245T

Datasheet Details

Part number IDT74FCT162245T
Manufacturer Integrated Device Tech
File Size 78.25 KB
Description FAST CMOS 16-BIT BIDIRECTIONAL TRANSCEIVERS
Datasheet download datasheet IDT74FCT162245T Datasheet
Additional preview pages of the IDT74FCT162245T datasheet.

📁 Similar Datasheet

Other Datasheets by Integrated Device Tech

Full PDF Text Transcription

Click to expand full text

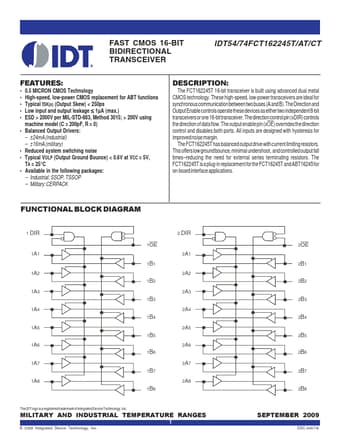

Integrated Device Technology, Inc. FAST CMOS 16-BIT BIDIRECTIONAL TRANSCEIVERS IDT54/74FCT16245T/AT/CT/ET IDT54/74FCT162245T/AT/CT/ET IDT54/74FCT166245T/AT/CT IDT54/74FCT162H245T/AT/CT/ET FEATURES: • Common features: – 0.5 MICRON CMOS Technology – High-speed, low-power CMOS replacement for ABT functions – Typical tSK(o) (Output Skew) < 250ps – Low input and output leakage ≤ 1µ A (max.) – ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0) – Packages include 25 mil pitch SSOP, 19.6 mil pitch TSSOP, 15.
