QS3244 - HIGH-SPEED CMOS QUICKSWITCH 8-BIT BUS SWITCH

QS3244 Description

IDTQS3244 HIGH-SPEED CMOS QUICKSWITCH 8-BIT BUS SWITCH QUICKSWITCH® PRODUCTS HIGH-SPEED CMOS QUICKSWITCH 8-BIT BUS SWITCH INDUSTRIALTEMPERATURERANGE .
The QS3244 provides a set of eight high-speed CMOS TTL-compatible bus switches in a pinout compatible with 74FCT244, 74F244, 74ALS/AS/ LS244 8-bit dr.

QS3244 Features

* Enhanced N channel FET with no inherent diode to Vcc
* 5Ω bidirectional switches connect inputs to outputs
* Pin compatible with 74F244, 74FCT244, and 74FCT244T
* Zero propagation delay, zero ground bounce
* Undershoot clamp diodes on all switch and control

QS3244 Applications

* Hot-swapping, hot-docking
* Voltage translation (5V to 3.3V)
* Power conservation
* Capacitance reduction and isolation
* Logic replacement (data processing)
* Clock gating

📥 Download Datasheet

Preview of QS3244 PDF

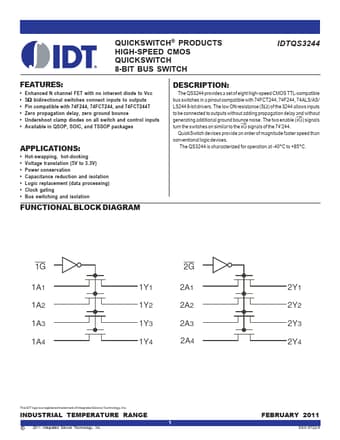

datasheet Preview Page 2 datasheet Preview Page 3
