QS3VH245PA - 2.5V / 3.3V 8-BIT HIGH BANDWIDTH BUS SWITCH

QS3VH245PA Description

IDTQS3VH245 2.5V / 3.3V 8-BIT HIGH BANDWIDTH BUS SWITCH INDUSTRIAL TEMPERATURE RANGE QUICKSWITCH® PRODUCTS 2.5V / 3.3V 8-BIT HIGH BANDWIDTH BUS SWIT.
IDTQS3VH245. N channel FET switches with no parasitic diode to VCC. Isolation under power-off conditions. No DC path to.

QS3VH245PA Applications

* The QS3VH245 is characterized for operation from -40°C to +85°C. APPLICATIONS:
* Hot-swapping 10/100 Base-T, Ethernet LAN switch Low distortion analog switch Replaces mechanical relay ATM 25/155 switching Bus switching and isolation FUNCT

📥 Download Datasheet

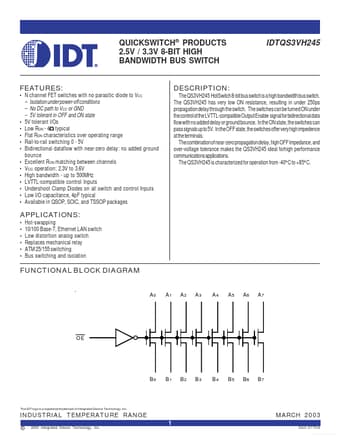

Preview of QS3VH245PA PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
QS3VH245PA
Manufacturer
IDT
File Size
91.39 KB
Datasheet
QS3VH245PA-IDT.pdf
Description
2.5V / 3.3V 8-BIT HIGH BANDWIDTH BUS SWITCH
