QS3VH2245 Datasheet - Renesas

QS3VH2245 2.5V / 3.3V 8-BIT HIGH BANDWIDTH BUS SWITCH

The QS3VH2245 is a high bandwidth 8-bit bus switch. The QS3VH2245, with 25Ω ON resistance and 1.35ns propagation delay, is ideal for line matching and low noise environments. The switches can be turned ON under the control of the LVTTL-compatible Output Enable signal for bidirectional data flow wit.

QS3VH2245 Features

* N channel FET switches with no parasitic diode to VCC

* Isolation under power-off conditions

* No DC path to VCC or GND

* 5V tolerant in OFF and ON state

* 5V tolerant I/Os

* Flat RON characteristics over operating range

* Rail-to-rail switc

QS3VH2245 Datasheet (403.67 KB)

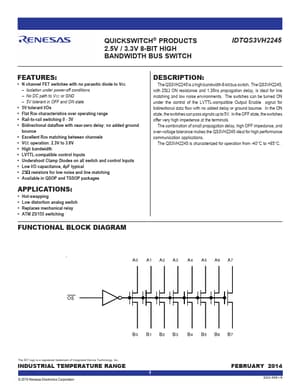

Preview of QS3VH2245 PDF

Datasheet Details

Part number:

QS3VH2245

Manufacturer:

Renesas ↗

File Size:

403.67 KB

Description:

2.5v / 3.3v 8-bit high bandwidth bus switch.
