QS3VH245 - 2.5V / 3.3V 8-BIT HIGH BANDWIDTH BUS SWITCH

QS3VH245 Description

IDTQS3VH245 2.5V / 3.3V 8-BIT HIGH BANDWIDTH BUS SWITCH INDUSTRIAL TEMPERATURE RANGE QUICKSWITCH® PRODUCTS 2.5V / 3.3V 8-BIT HIGH BANDWIDTH BUS SWIT.
The QS3VH245 HotSwitch 8-bit bus switch is a high bandwidth bus switch.

QS3VH245 Features

* N channel FET switches with no parasitic diode to VCC
* Isolation under power-off conditions
* No DC path to VCC or GND
* 5V tolerant in OFF and ON state
* 5V tolerant I/Os
* Low RON - 4Ω typical
* Flat RON characteristics over operating ran

QS3VH245 Applications

* Hot-swapping
* 10/100 Base-T, Ethernet LAN switch
* Low distortion analog switch
* Replaces mechanical relay
* ATM 25/155 switching

📥 Download Datasheet

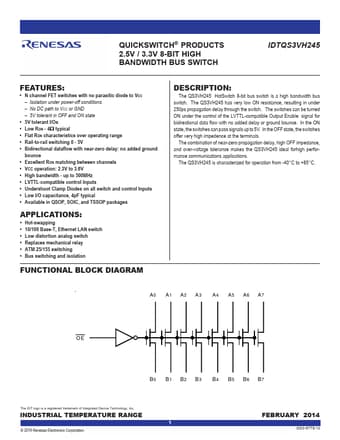

Preview of QS3VH245 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
QS3VH245
Manufacturer
Renesas ↗
File Size
413.58 KB
Datasheet
QS3VH245-Renesas.pdf
Description
2.5V / 3.3V 8-BIT HIGH BANDWIDTH BUS SWITCH
