QS3257 - HIGH-SPEED CMOS QUICKSWITCH QUAD 2:1 MUX/DEMUX

QS3257 Description

QUICKSWITCH® PRODUCTS HIGH-SPEED CMOS QUICKSWITCH QUAD 2:1 MUX/DEMUX QS3257 QS32257 .
The QS3257 is a high-speed CMOS LVTTL-compatible Quad 2:1 multiplexer/demultiplexer.

QS3257 Features

* BENEFITS
* Enhanced N channel FET with no inherent diode to VCC
* 5Ω bidirectional switches connect inputs to outputs
* Pin compatible with the 74F257, 74FCT257, and 74FCT257T
* Zero propagation delay, zero ground bounce
* TTL-compatible control inputs

QS3257 Applications

* Logic replacement
* Video, audio, graphics switching, muxing
* Hot-swapping, hot-docking (Application Note AN-13)
* Voltage translation (5V to 3.3V; Application Note 11)

📥 Download Datasheet

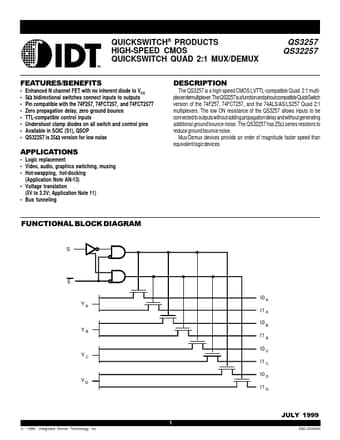

Preview of QS3257 PDF
