QS3VH253 - 2.5V / 3.3V DUAL 4:1 MUX/DEMUX HIGH BANDWIDTH BUS SWITCH

QS3VH253 Description

IDTQS3VH253 2.5V / 3.3V DUAL 4:1 MUX/DEMUX HIGH BANDWIDTH BUS SWITCH INDUSTRIAL TEMPERATURE RANGE QUICKSWITCH® PRODUCTS 2.5V / 3.3V DUAL 4:1 MUX/DEM.
The QS3VH253 HotSwitch Dual 4:1 multiplexer/demultiplexer is a high bandwidth bus switch.

QS3VH253 Features

* N channel FET switches with no parasitic diode to VCC
* Isolation under power-off conditions
* No DC path to VCC or GND
* 5V tolerant in OFF and ON state
* 5V tolerant I/Os
* Low RON - 4Ω typical
* Flat RON characteristics over operating ran

QS3VH253 Applications

* Hot-swapping
* Multiplexing/demultiplexing
* Low distortion analog switch
* Replaces mechanical relay

📥 Download Datasheet

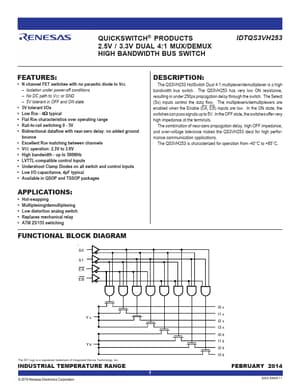

Preview of QS3VH253 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
QS3VH253
Manufacturer
Renesas ↗
File Size
412.69 KB
Datasheet
QS3VH253-Renesas.pdf
Description
2.5V / 3.3V DUAL 4:1 MUX/DEMUX HIGH BANDWIDTH BUS SWITCH
