QS3VH244 - 2.5V / 3.3V 8-BIT HIGH BANDWIDTH BUS SWITCH

QS3VH244 Description

IDTQS3VH244 2.5V / 3.3V 8-BIT HIGH BANDWIDTH BUS SWITCH QUICKSWITCH® PRODUCTS 2.5V / 3.3V 8-BIT HIGH BANDWIDTH BUS SWITCH INDUSTRIAL TEMPERATURE RANG.
The QS3VH244 HotSwitch is a high bandwidth, 8-bit bus switch.

QS3VH244 Features

* N channel FET switches with no parasitic diode to VCC
* Isolation under power-off conditions
* No DC path to VCC or GND
* 5V tolerant in OFF and ON state
* 5V tolerant I/Os
* Low RON - 4Ω typical
* Flat RON characteristics over operating ran

QS3VH244 Applications

* Hot-swapping
* 10/100 Base-T, Ethernet LAN switch
* Low distortion analog switch
* Replaces mechanical relay
* ATM 25/155 switching

📥 Download Datasheet

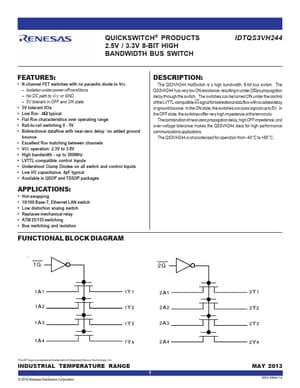

Preview of QS3VH244 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
QS3VH244
Manufacturer
Renesas ↗
File Size
416.74 KB
Datasheet
QS3VH244-Renesas.pdf
Description
2.5V / 3.3V 8-BIT HIGH BANDWIDTH BUS SWITCH
