ZSC31050

Advanced Differential Sensor Signal Conditioner

IDT

ZSC31050 Features

* Digital compensation of sensor offset, sensitivity, temperature drift, and nonlinearity

* Accommodates nearly all resistive bridge sensor types (signal spans from 1mV/V up to 275mV/V)

* Digital one-pass calibration: quick and precise

* Selectable compensation temperature source: br

ZSC31050 General Description

ZSC31050 is a CMOS integrated circuit for highly accurate amplification and sensor-specific correction of bridge sensor and temperature sensor signals. The device provides digital compensation of sensor offset, sensitivity, temperature drift, and nonlinearity via a 16-bit RISC microcontroller runnin.

ZSC31050 Datasheet (664.20 KB)

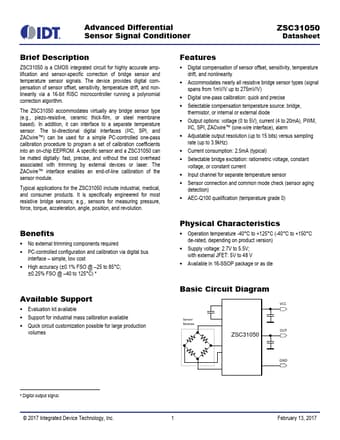

ZSC31050 Datasheet Preview — Preview of ZSC31050 PDF

Datasheet Details

Part number:

ZSC31050

Manufacturer:

IDT

File Size:

664.20 KB

Description:

Advanced differential sensor signal conditioner.
