ZSC-3-1 Datasheet, Splitter/combiner, Mini-Circuits

ZSC-3-1 Features

• Splitter/combiner
• low insertion loss, 0.4 dB typ.
• high isolation, 40 dB typ.
• excellent amplitude unbalance, 0.1 dB typ.
• excellent phase unbalance, 1 deg. typ.

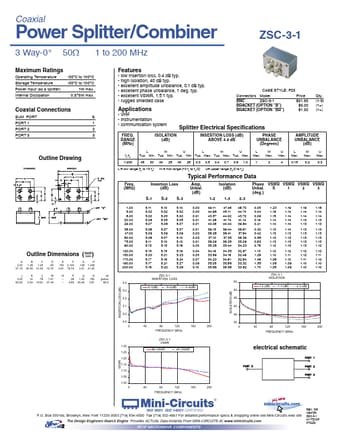

PDF File Details

Part number:

ZSC-3-1

Manufacturer:

Mini-Circuits

File Size:

179.50kb

Download:

📄 Datasheet

Description:

Power splitter/combiner.

ZSC-3-1 Application

• Applications
• VHF
• instrumentation
• communication system FREQ. RANGE (MHz) fL-fU 1-200 Splitter Electrical Specification
