ZSC-2-1-75 Datasheet, Splitter/combiner, Mini-Circuits

ZSC-2-1-75 Features

  • Splitter/combiner
  • low insertion loss, 0.4 dB typ.
  • high isolation, 30 dB typ.
  • excellent amplitude unbalance, 0.1 dB typ.
  • excellent phase unbalance, 0.2 deg. typ.

PDF File Details

Part number:

ZSC-2-1-75

Manufacturer:

Mini-Circuits

File Size:

199.80kb

Download:

📄 Datasheet

Description:

Power splitter/combiner.

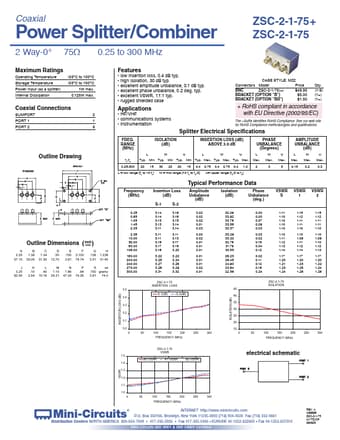

Datasheet Preview: ZSC-2-1-75 📥 Download PDF (199.80kb)

ZSC-2-1-75 Application

  • Applications
  • HF/VHF
  • communications systems
  • instrumentation FREQ. RANGE (MHz) ISOLATION (dB) L fL-fU 0.25-300 M U + R
