IK2107

LED Driver

IK2107 Features

* PIN CONNECTION

* CMOS Technology

* Segment output line selection by command : 12 ~ 9

* Grid output line selection by command : 7 ~ 4

* Operation voltage : 5V

* Low Power Consumption

* 8-Step Dimming control by command

* Serial Interface for Clock, Data Input, Strobe Pin

IK2107 General Description

The IK2107 is specifically designed for cathode-grid LED and LED DISPLAY derivers. The IK2107 have 12/9 segment output lines, 7 to 4 grid output lines, one display memory, control circuit and 3 line serial data interface. This function are all incorporated into a single chip to build a highly reliab.

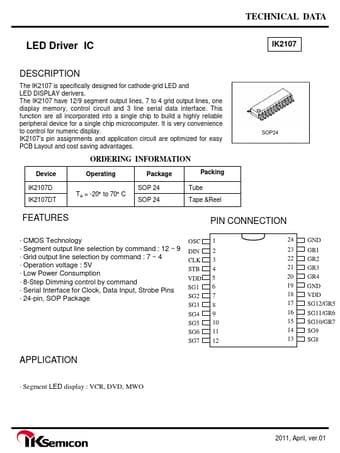

IK2107 Datasheet (235.57 KB)
