IK2802

HIGH-POWER LED DRIVER

IK2802 Features

* 2 constant-current output channels

* Constant output current invariant to load voltage change

* Maximum output constant current per channel: 360 mA

* Thermal protection and flag

* Output current adjusted through an external resis- tor

* Schmitt trigger input

* 5V supply

IK2802 General Description

IK2802 is an instant On/Off LED driver for high power LED applications and exploits to enhance its output characteristics. IK2802 provides users with 2-channel constant current ports. Users may adjust the output current up to 360 mA through an external resistor, Rext, which gives users flexibility.

IK2802 Datasheet (304.13 KB)

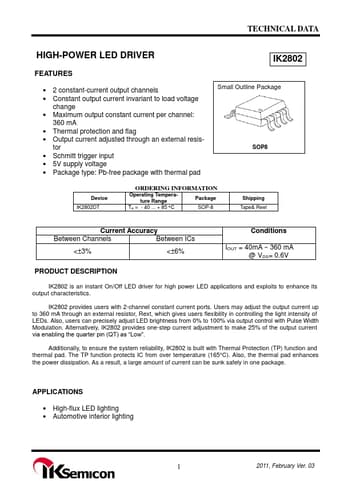

Preview of IK2802 PDF

Datasheet Details

Part number:

IK2802

Manufacturer:

IK Semicon

File Size:

304.13 KB

Description:

High-power led driver.
