IK3051 Constant Voltage and Constant Current Controller

IK Semicon

Description

TECHNICAL DATA Constant Voltage and Constant Current Controller for Adaptors and Battery Chargers .
IK3051 is a highly integrated solution for SMPS applications requiring constant voltage and constant current mode.

📥 Download Datasheet

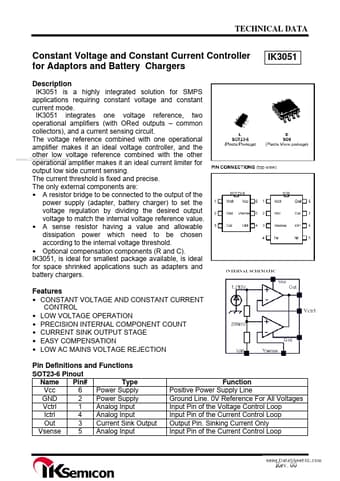

IK3051 Datasheet Preview — Preview of IK3051 PDF

Datasheet Specifications

Part number: IK3051
Manufacturer: IK Semicon
File Size: 354.64 KB
Datasheet: IK3051_IKSemicon.pdf
Description: Constant Voltage and Constant Current Controller

Features

* CONSTANT VOLTAGE AND CONSTANT CURRENT CONTROL
* LOW VOLTAGE OPERATION
* PRECISION INTERNAL COMPONENT COUNT
* CURRENT SINK OUTPUT STAGE
* EASY COMPENSATION
* LOW AC MAINS VOLTAGE REJECTION Pin Definitions and Functions SOT23-6 Pinout Name Pin# Type Vc

Applications

* requiring constant voltage and constant current mode. IK3051 integrates one voltage reference, two operational amplifiers (with ORed outputs
* common collectors), and a current sensing circuit. The voltage reference combined with one operational amplifier makes it an ideal voltage controller
