IK3301 Datasheet, Ic, IK Semicon

IK3301 Features

  • Ic
  • Built-in 3-Channel Voltage Output Option : 15V / 5.0V / -8V, 12V / 3.3V / -8V
  • PWM Method
  • High Power Efficiency (80%)
  • Low Heat Dissipation

PDF File Details

Part number:

IK3301

Manufacturer:

IK Semicon

File Size:

605.75kb

Download:

📄 Datasheet

Description:

Triple dc to dc converter control ic. IK3301 is to be used as power supply control IC for the system that is based on CCD image sensor. IK3301 supplies all the voltages th

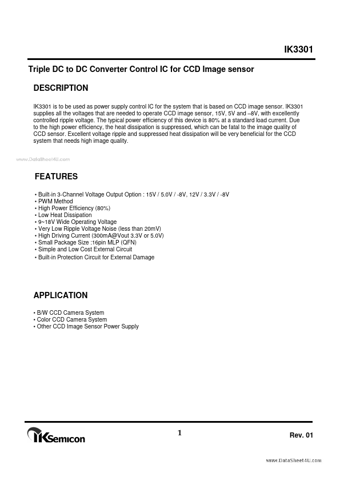

Datasheet Preview: IK3301 📥 Download PDF (605.75kb)
Page 2 of IK3301 Page 3 of IK3301
