ILA7053N Datasheet - IK Semiconductor

ILA7053N - Setreo BTL

signal ground 1 input 1 not connected not connected supply voltage input 2 signal ground 2 not connected Note The information contained within the parentheses refer to the polarity of the loudspeaker terminal to which the output must be connected.

FUNCTIONAL DESCRIPTION w w w t a .D e h S a Pi

TECHNICAL DATA 2 x 1 W portable/mains-fed stereo power amplifier The ILA7053N is an integrated class-B stereo power amplifier in a 16-lead dual-in-line (DIL) plastic package.

The device, consisting of two BTL amplifiers, is primarily developed for portable audio applications but may also be used in mains-fed applications.

No external components No switch-ON/OFF clicks Good overall stability Low power consumption Short-circuit-proof 16 1 ILA7053

ILA7053N_IKSemiconductor.pdf

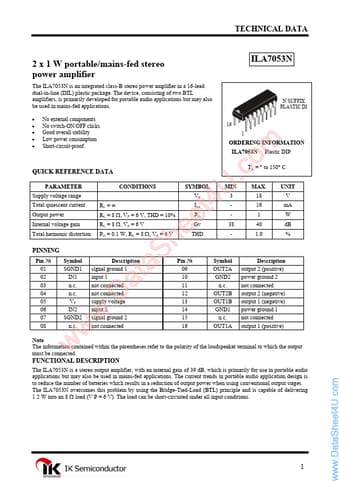

Preview of ILA7053N PDF
