ILA7056B 5 W Mono BTL Audio Amplifier

The ILA7056B is a mono BTL output amplifier with DC volume control, designed for use in TV and monitor but is also suitable for battery-fed portable recorders and radios. In conventional DC volume circuits the control or input stage is AC coupled to the output stage via external capacitors to keep t.

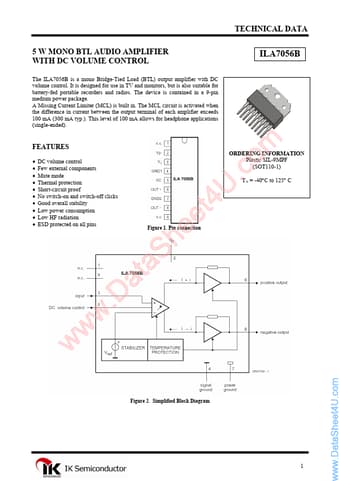

TECHNICAL DATA 5 W MONO BTL AUDIO AMPLIFIER WITH DC VOLUME CONTROL The ILA7056B is a mono Bridge-Tied Load (BTL) output amplifier with DC volume control. It is designed for use in TV and monitors, but is also suitable for battery-fed portable recorders and radios. The device is contained in a 9-pin medium power package. A Missing Current Limiter (MCL) is built in. The MCL circuit is activated when the difference in current between the output terminal of each amplifier exceeds 100 mA (300 mA typ..

ILA7056B Features

* DC volume control Few external components Mute mode Thermal protection Short-circuit proof No switch-on and switch-off clicks Good overall stability Low power consumption Low HF radiation ESD protecte
