10N12 - N-Channel MOSFET

Product Overview

INCHANGE

📥 Download Datasheet

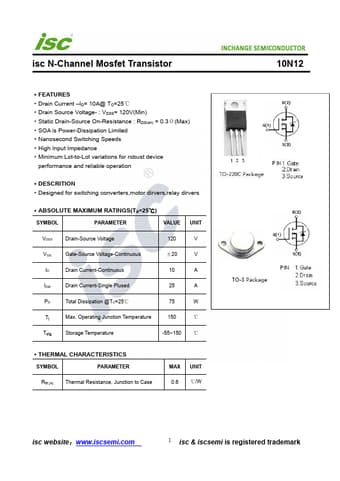

10N12 N-Channel MOSFET by INCHANGE - Datasheet Preview — Datasheet preview – 10N12

Datasheet Details

Part number	10N12
Manufacturer	INCHANGE
File Size	255.16 KB
Description	N-Channel MOSFET
Datasheet	10N12 Datasheet
Additional preview pages of the 10N12 datasheet.

Product details

Features

Drain Current.
ID= 10A@ TC=25℃.
Drain Source Voltage- : VDSS= 120V(Min).
Static Drain-Source On-Resistance : RDS(on) = 0.3Ω(Max).
SOA is Power-Dissipation Limited.
Nanosecond Switching Speeds.
High Input Impedance.
Minimum Lot-to-Lot variations for robust device performance and reliable operation.
