10N120BND - HGTG10N120BND

10N120BND Description

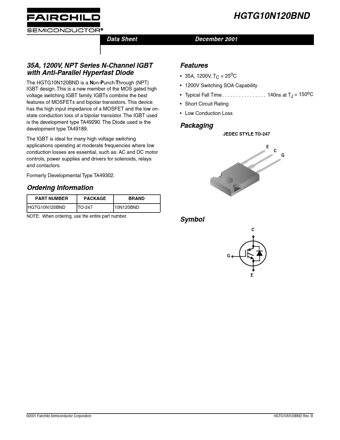

Data Sheet HGTG10N120BND December 2001 35A, 1200V, NPT Series N-Channel IGBT with Anti-Parallel Hyperfast Diode The HGTG10N120BND is a Non-Punch Thr.

10N120BND Features

* of MOSFETs and bipolar transistors. This device has the high input impedance of a MOSFET and the low onstate conduction loss of a bipolar transistor. The IGBT used is the development type TA49290. The Diode used is the development type TA49189. The IGBT is ideal for many high voltage switching appli

10N120BND Applications

* operating at moderate frequencies where low conduction losses are essential, such as: AC and DC motor controls, power supplies and drivers for solenoids, relays and contactors. Formerly Developmental Type TA49302. Ordering Information PART NUMBER PACKAGE BRAND HGTG10N120BND TO-247 10N120BND
