2SA2223 - PNP Transistor

2SA2223 Description

isc Silicon PNP Power Transistor INCHANGE Semiconductor 2SA2223 .
High frequency multi emitter transistor. Small package(TO-3P). High power handling capacity ,160W. Complement to Type 2SC6145. Mi.

2SA2223 Applications

* Signal transistors for audio amplifiers
* Audio market ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -230 V VCEO Collector-Emitter Voltage -230 V VEBO Emitter-Base Voltage -5 V IC Collector Current-Continuous -15 A IB Base Curr

📥 Download Datasheet

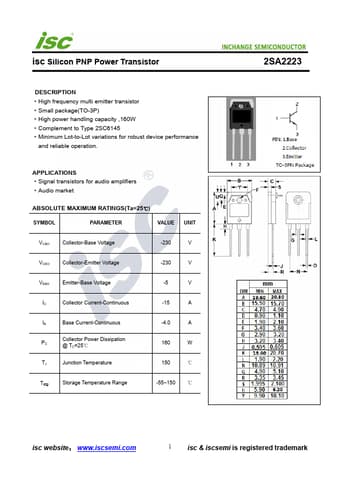

Preview of 2SA2223 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SA2223
Manufacturer
INCHANGE
File Size
187.17 KB
Datasheet
2SA2223-INCHANGE.pdf
Description
PNP Transistor
