2SB1565 PNP Transistor

2SB1565 Description

isc Silicon PNP Power Transistor .
Collector-Emitter Breakdown Voltage- : V(BR)CEO= -60V(Min). Collector Power Dissipation- : PC= 25 W@ TC= 25℃. Low Collector Saturation Vo.

2SB1565 Applications

* Designed for power amplifications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -80 V VCEO Collector-Emitter Voltage -60 V VEBO Emitter-Base Voltage -7 V IC Collector Current-Continuous -3 A ICM Collector Current-Peak Collector

📥 Download Datasheet

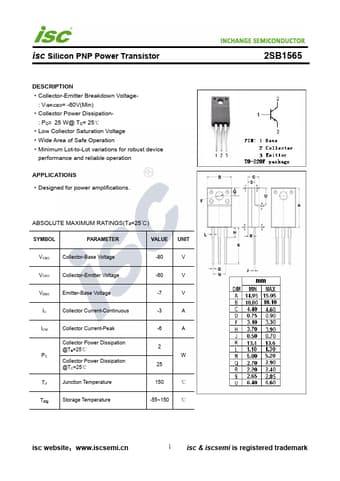

Preview of 2SB1565 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SB1565
Manufacturer
INCHANGE
File Size
226.20 KB
Datasheet
2SB1565-INCHANGE.pdf
Description
PNP Transistor
