2SC1730 - Silicon NPN RF Transistor

2SC1730 Description

isc Silicon NPN RF Transistor INCHANGE Semiconductor 2SC1730 .
Low Base Time Constant; rbb’. CC = 10 ps TYP. High Gain Bandwidth Product fT= 1100 MHz TYP. Low Output Capacitance; COB = 1.

2SC1730 Applications

* Designed for TV VHF, UHF tuner oscillator applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 30 V VCEO Collector-Emitter Voltage 15 V VEBO Emitter-Base Voltage 5 V IC Collector Current-Continuous PC Collector Power Dissipati

📥 Download Datasheet

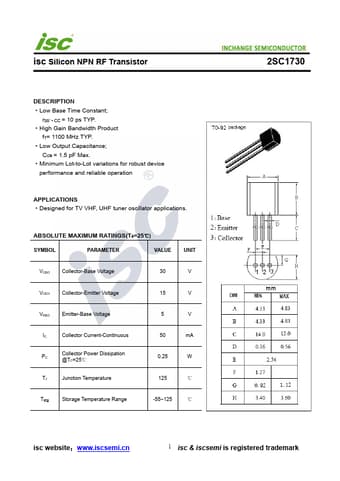

Preview of 2SC1730 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SC1730
Manufacturer
INCHANGE
File Size
182.16 KB
Datasheet
2SC1730-INCHANGE.pdf
Description
Silicon NPN RF Transistor
